Automatic monopusher chronograph
Officially certified chronometer
Power indicator by disk
Elapsed time marker operated by the bezel
Applied minutes ring
X1 grade Superluminova® luminous
Total edition 70pcs
Our factory direct promise

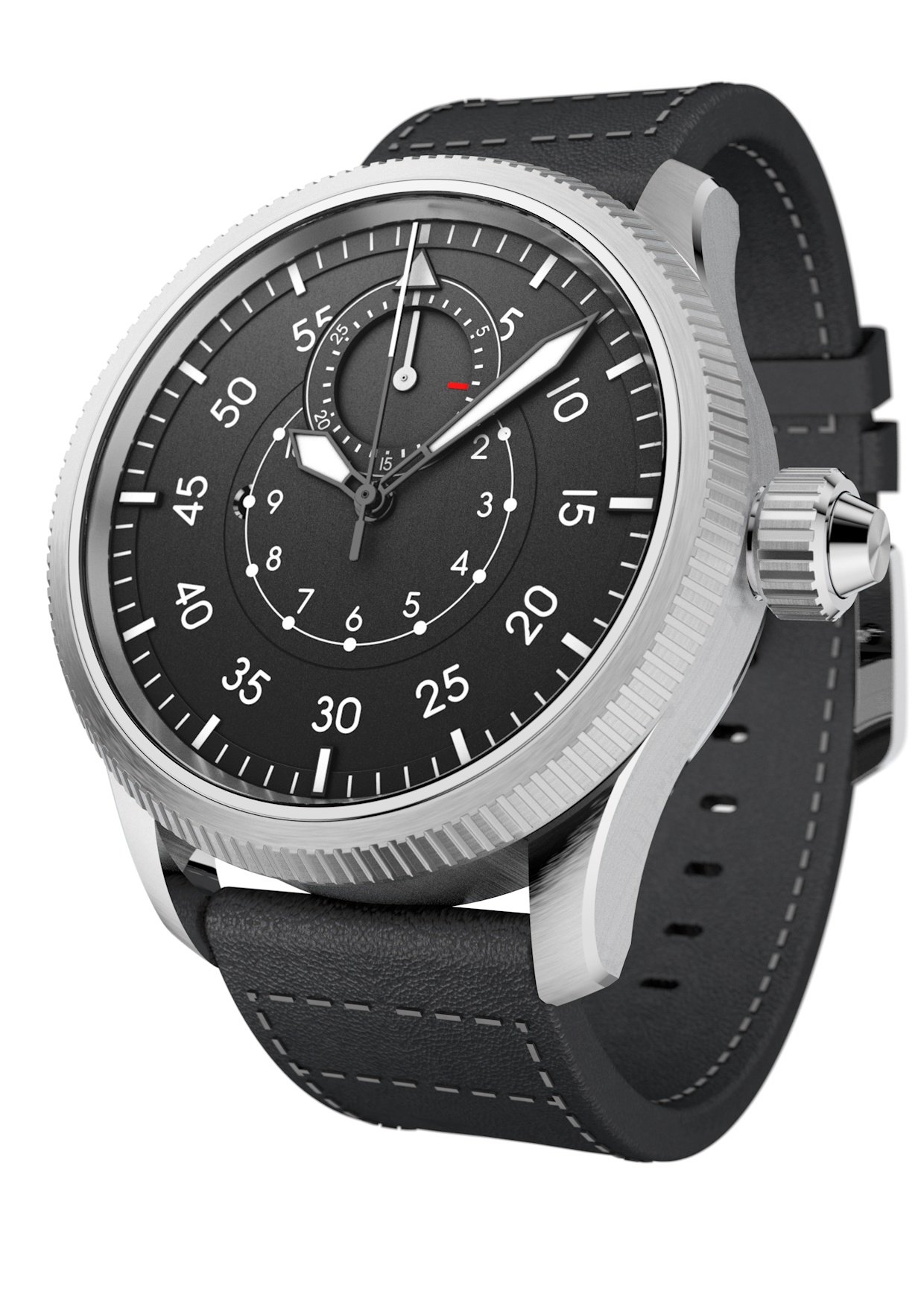

The evolution of the B-Uhr. A monopusher chronometer chrongraph
The Watch Angels B-Uhr design DNA is found in its traditional "Baumuster B" type dial. The dial design of the monopusher chronograph B-Uhr is identical to that of a 3 hands B-Uhr when the chronograph is not activated. This effect has been reached by having the central chronograph hand, the 30min chronograph hand and the elapsed time marker perfectly overlap when the chronograph is inactive.
Additionally, the watch can be immediately recognized by the open sapphire case-back which reveals the antimagnetic soft iron cage that has been engraved with the military identification markings.
For additional pilot functions and true mission usability. With a monopusher the pilot can start, stop and reset the chronograph by pushing the same button. A seamless and fast way of operating the chronograph which does not require to shift from one button to the other.
The Watch Angels B-Uhr encases a Sellita SW500 MPCb automatic monopusher chronograph chronometer caliber.
To meet the B-Uhr precision specifications the movement is an officially certified Swiss COSC chronometer.
The movement is tested for 15 days at three different temperatures and in five different positions (3 o’clock, 6 o’clock, 9 o’clock, dial on top, dial on the bottom) with an average daily rate tollerance of −4/+6 seconds.
For consistent high precision, and in compliance with the original B-Uhr specifications, the movement is fitted into a soft iron cage to protect it from magnetic fields. The cage, which also features the identification markings, can be seen through the sapphire open case-back.

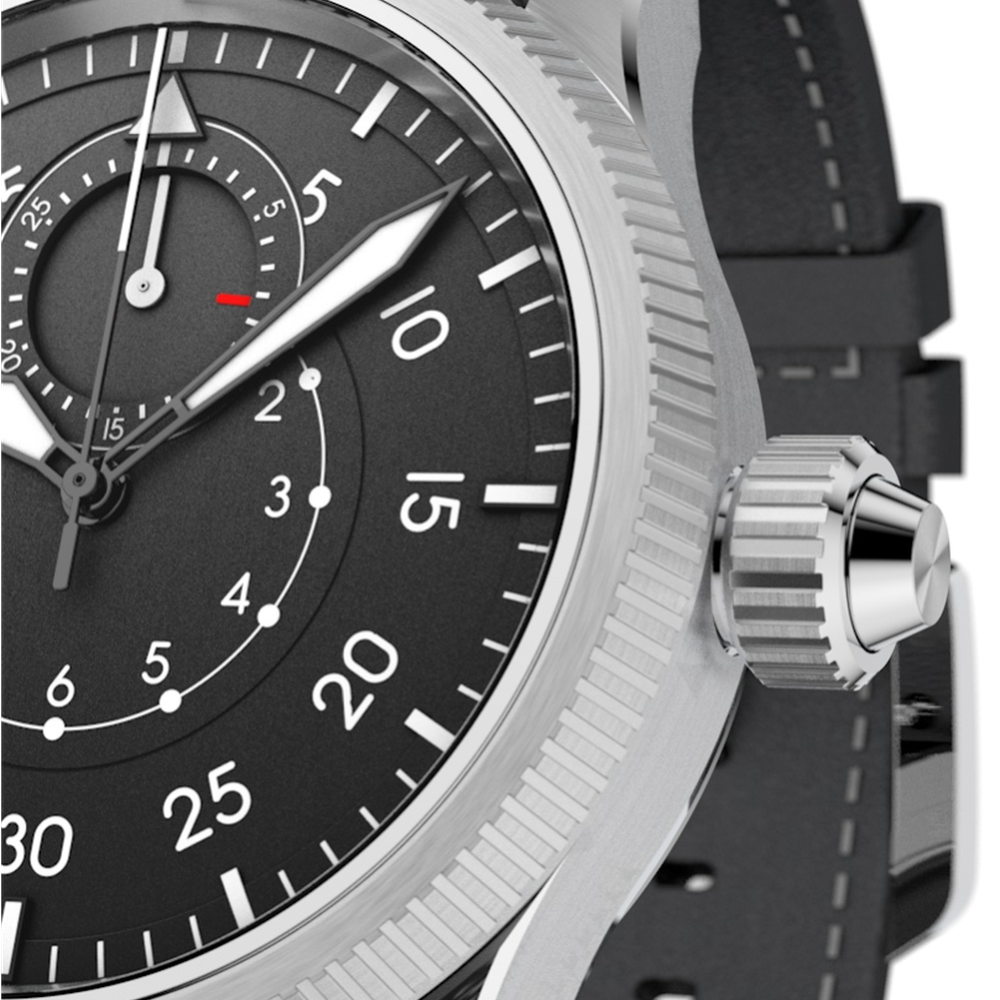

Crown & pusher
The chronograph pusher is intergated within the oversized crown. Desite being oversized, it has been kept to a size which assures optimal wearer comfort and allows operation with gloves, a requirement for a B-Uhr.
To know if the watch is powered, a moving disk at 9 o'clock shows this information at glance.
Historically, the observation watch was conceived and built for purpose. It was made and specified to aid seafarers and pilots to navigate at sea and in the air. Our approach has been to respect the original B-Uhr specifications but to execute them like if the B-Urh would have first been made today. With todays technology and todays aesthetic codes.
Chronometric precision, perfect dan and night readability, anti-magnetism and an oversized crown are are all present in this 2022 B-Uhr, however the design and construction additionally take great care in assuring wearer comfort as well as fucntional and every day usability.
We have made the B-Uhr like it would have been made today, with additional features and guaranteeing day-to-day usability and wearer comfort.
Discover the project
Superluminova® pigments are Swiss made and offer the strongest possible afterglow performance. The pigments are non-radioactive, REACH compatible, highly temperature resistant and resistant to environmental influences.
Grade X1 used on the B-Uhr shows a performance increase of up to 60% after two hours compared to standard grades. Long term legibility according to the ISO 3157 standard is extended by at least a factor of 1.6.
- 316L (1.4404) stainless steel
- Sapphire crystal with anti-reflective treatment

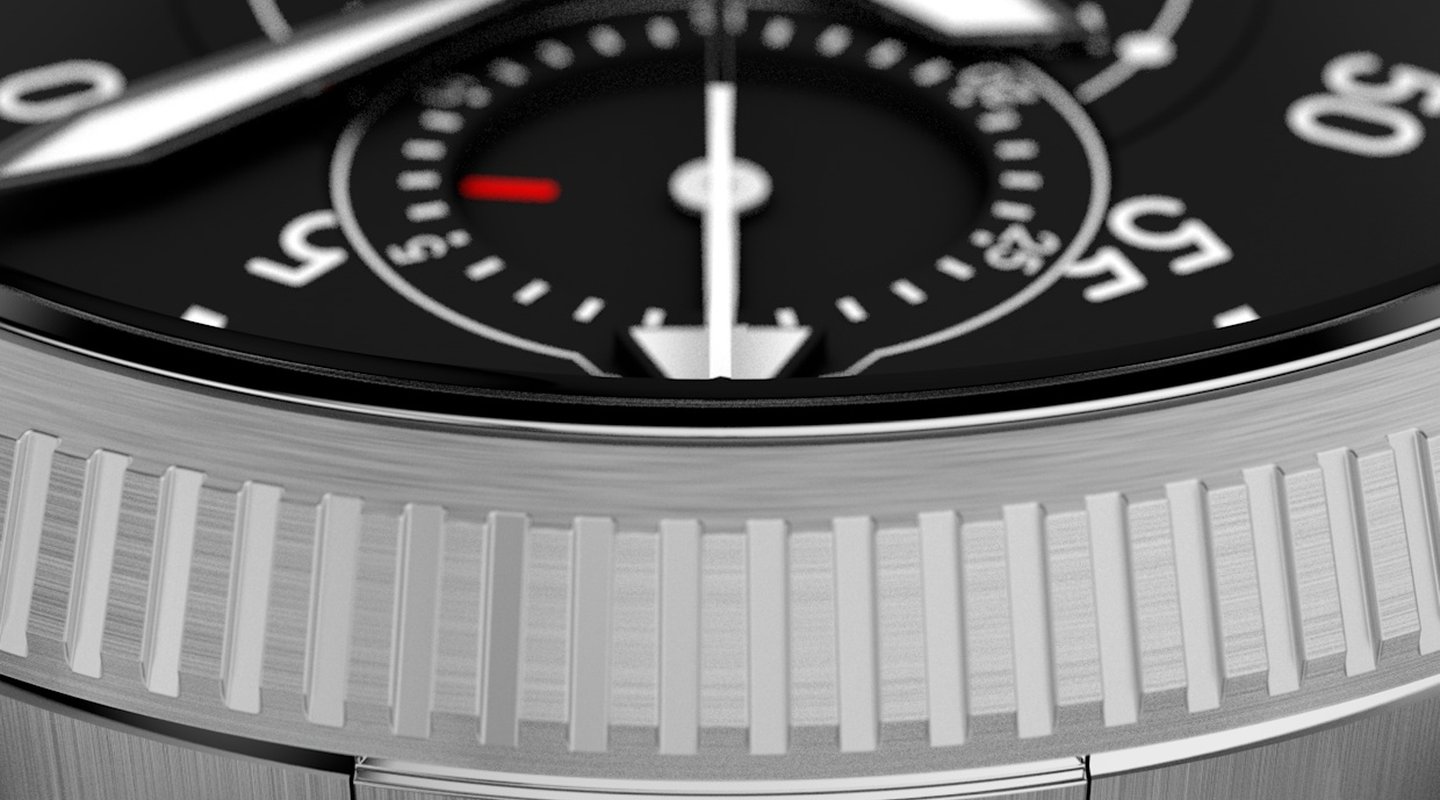

- Bi-directional turning bezel which operates the elapsed time marker
- Open case-back with sapphire crystal
6 to 9 brushed central case-body. Circular brushed lugs with polished bevel. Circular brushed bezel with polished ring. Circular brushed case back with polished bevel and sandblasted notches.
- Applied matt minutes ring

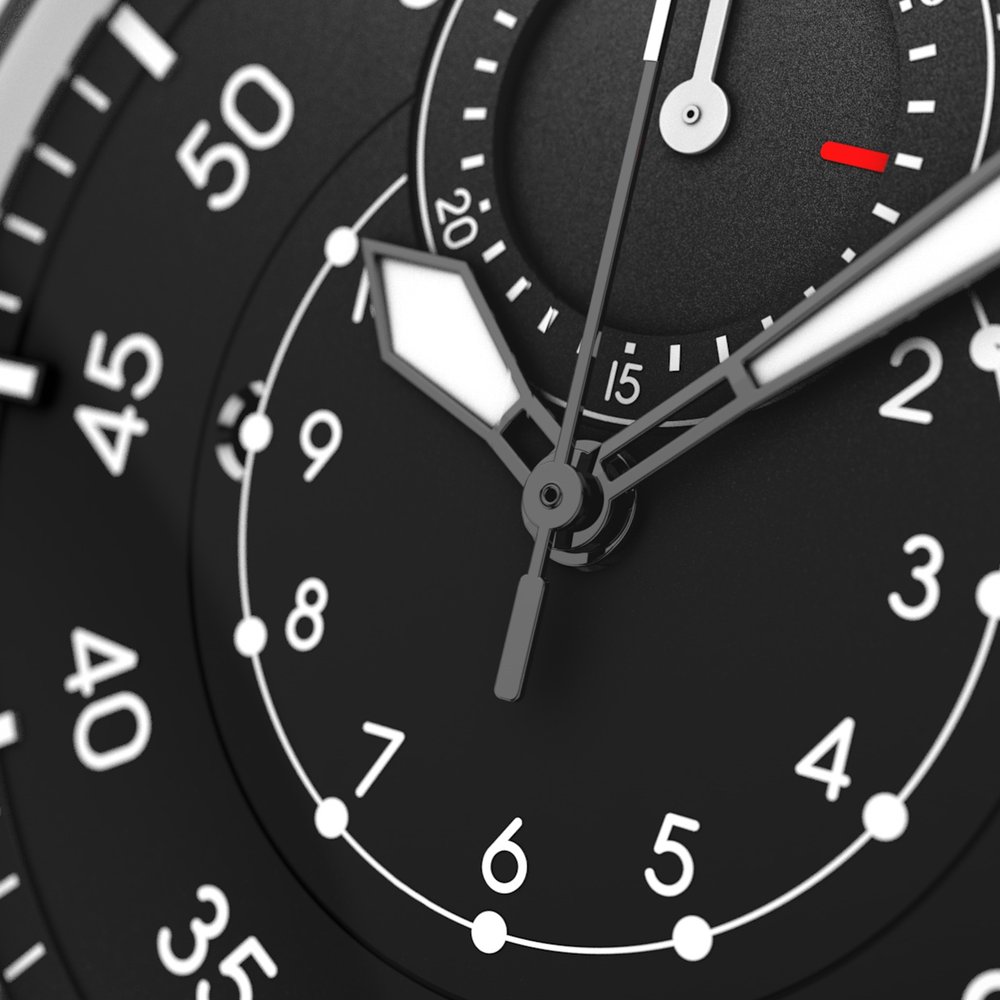

- Matt black dial with white indexes
- 30min chronograph counter at 12 o'clock with elapsed time marker
- Power indicator by disk at 9 o'clock
- X1 grade Superluminova® luminous hands and print
Black genuine italian leather with grey stitching and 316L (1.4404) stainless steel pin buckle
10 ATM / 100m / 333ft
Swiss made Sellita SW500 MPC b monopusher chronograph
Officially certified chronometer
Hours, minutes, small seconds (transformed into power indicator), 30min chronograph
Mechanical, self-winding, 28’800 bhp/4Hz
